Dual Glass Monocrystalline PV Module 30A Rs6-560~580nbg-E3 N-Type

Product Categories
Beijing MITSCN Co., Ltd.
Contact Now

Dual Glass Monocrystalline PV Module 30A Rs6-560~580nbg-E3 N-Type

Brand Name : Mitscn

Certification : ISO

Place of Origin : China

MOQ : Negotiatble

Payment Terms : L/C, D/A, D/P, T/T

Packaging Details : carton,pallet,full container

Cell Type : Mono N-Type 182*182(±1）mm,144(6*24)half cut cell

Dimension : 2278*1134*30mm

Weight : 32.8kg

Maximum System Voltage : 1500VDC

Maximum Series Fuse Rating : 30A

Container : 40'HQ (20plts,720pcs)

Contact Now

BIFACIAL MODULE WITH DUAL GLASS RS6-560~580NBG-E3

N -Type /Positive power tolerance of 0~+3%/Max module efficiency 22.45%
Suitable for ground power plants and distributed projects

Advanced module technology delivers superior module efficiency
·Gallium-doped Wafer·Non destructive cutting ·MBB half-cut
Excellent power generation performance
·Excellent IAM and Weak light response ·Low temperature ratings
·0.40% linear Power decline
High module quality ensures long-term reliability
·Strict selected material ·Advanced technology ·Leading standard
Ultra-hydrophilic self-cleaning coating techniques

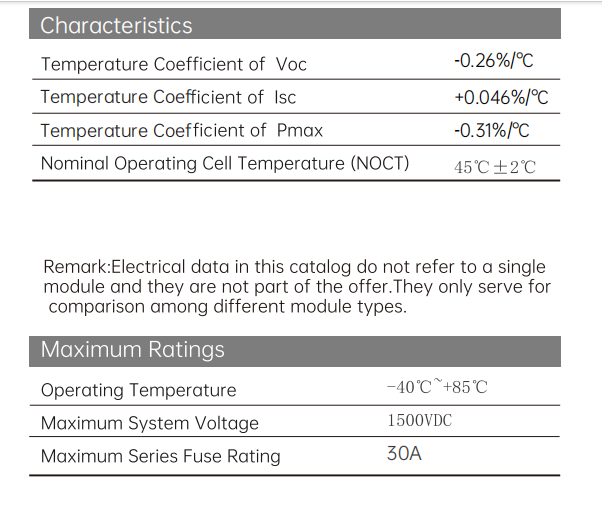

Dual Glass Monocrystalline PV Module 30A Rs6-560~580nbg-E3 N-TypeDual Glass Monocrystalline PV Module 30A Rs6-560~580nbg-E3 N-Type
Electrical Characteristics STC RS6-560NBG-E3 RS6-565NBG-E3 RS6-570NBG-E3 RS6-575NBG-E3 RS6-580NBG-E3
Maximum Power(Pmax) 560W 565W 570W 575W 580W
Power Tolerance 0~+5W 0~+5W 0~+5W 0~+5W 0~+5W
Module Efficiency 21.68% 21.87% 22.07% 22.23% 22.45%
Maximum Power Current(Imp) 13.16A 13.21A 13.27A 13.32A 13.38A
Maximum Power Voltage(Vmp) 42.55V 42.77V 42.95V 43.17V 43.35V
Short Circuit Current (Isc) 13.93A 13.99A 14.05A 14.11A 14.17A
Open Circuit Voltage (Voc) 51.02V 51.25V 51.48V 51.71V 51.94V

Values at Standard Test Conditions STC(AM1.5, Iradiance 1000W/m², Cell Temperatue 25℃)

Electrical Characteristics NOCT RS6-560NBG-E3 RS6-565NBG-E3 RS6-570NBG-E3 RS6-575NBC-E3 RS6-580NBG-E3
Maximum Power(Pmax) 424W 428W 432W 436W 440W
Maximum Power Current(Imp) 10.61A 10.65A 10.70A 10.74A 10.79A
Maximum Power Voltage(Vmp) 39.96V 40.19V 40.37V 40.60V 40.78V
Short Circuit Current (lsc) 11.23A 11.28A 11.33A 11.38A 11.42A
Open Circuit Voltage(Voc) 48.59V 48.83V 49.07V 49.31V 49.59V

NOCT, Iradiance of 800W/m²,AM1.5, Ambient Temperature 20 ℃, wind Speed 1m/s.

Electrical Characteristics with 21% rear side power gain

RS6-

560NBG-E3

 RS6-565NBG-E3 RS6-570NBG-E3 RS6-575NBG-E3 RS6-580NBG-E3
Maximum Power(Pmax) 678W 684W 690W 696W 702W
Maximum Power Current (lmp) 15.92A 15.98A 16.06A 16.12A 16.19A
Maximum Power Voltage(Vmp) 42.55V 42.77V 42.95V 43.17V 43.35V
Short Circuit Curent (lsc) 16.86A 16.93A 17.00A 17.07A 17.15A
Open Circuit Voltage(Voc) 51.02V 51.25V 51.48V 51.71V 51.94V

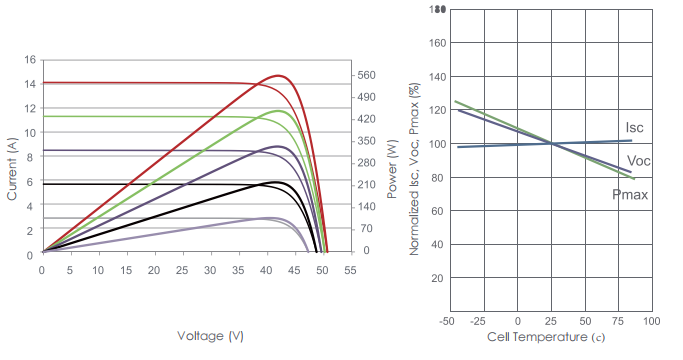

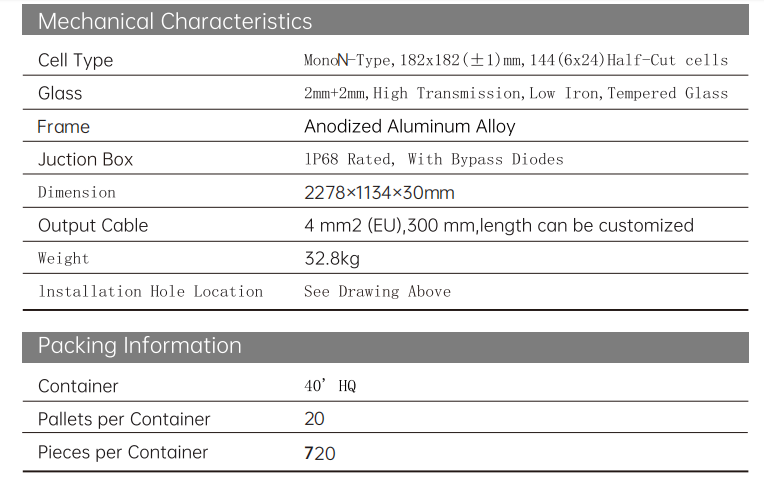

Dual Glass Monocrystalline PV Module 30A Rs6-560~580nbg-E3 N-TypeDual Glass Monocrystalline PV Module 30A Rs6-560~580nbg-E3 N-Type
